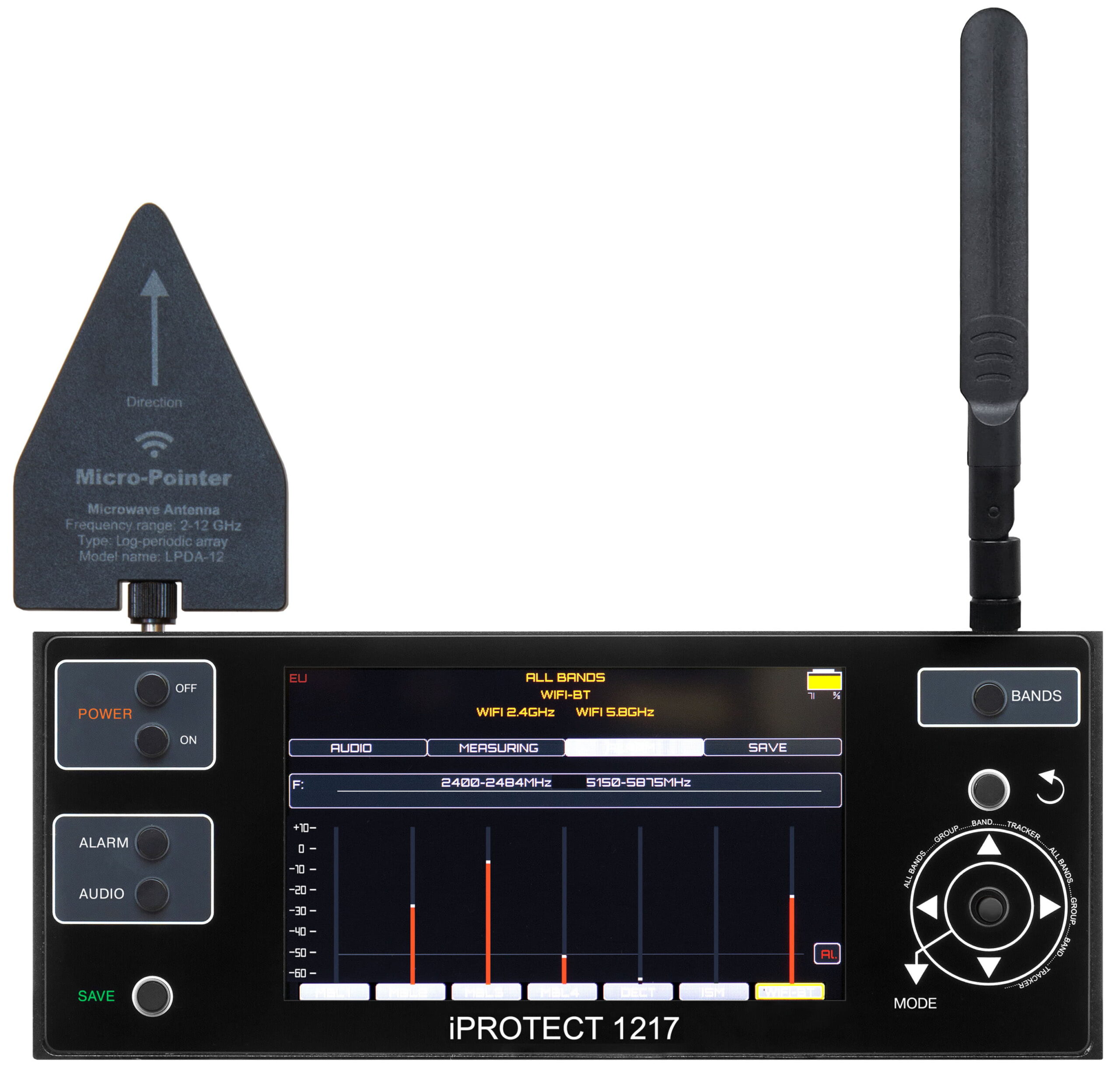

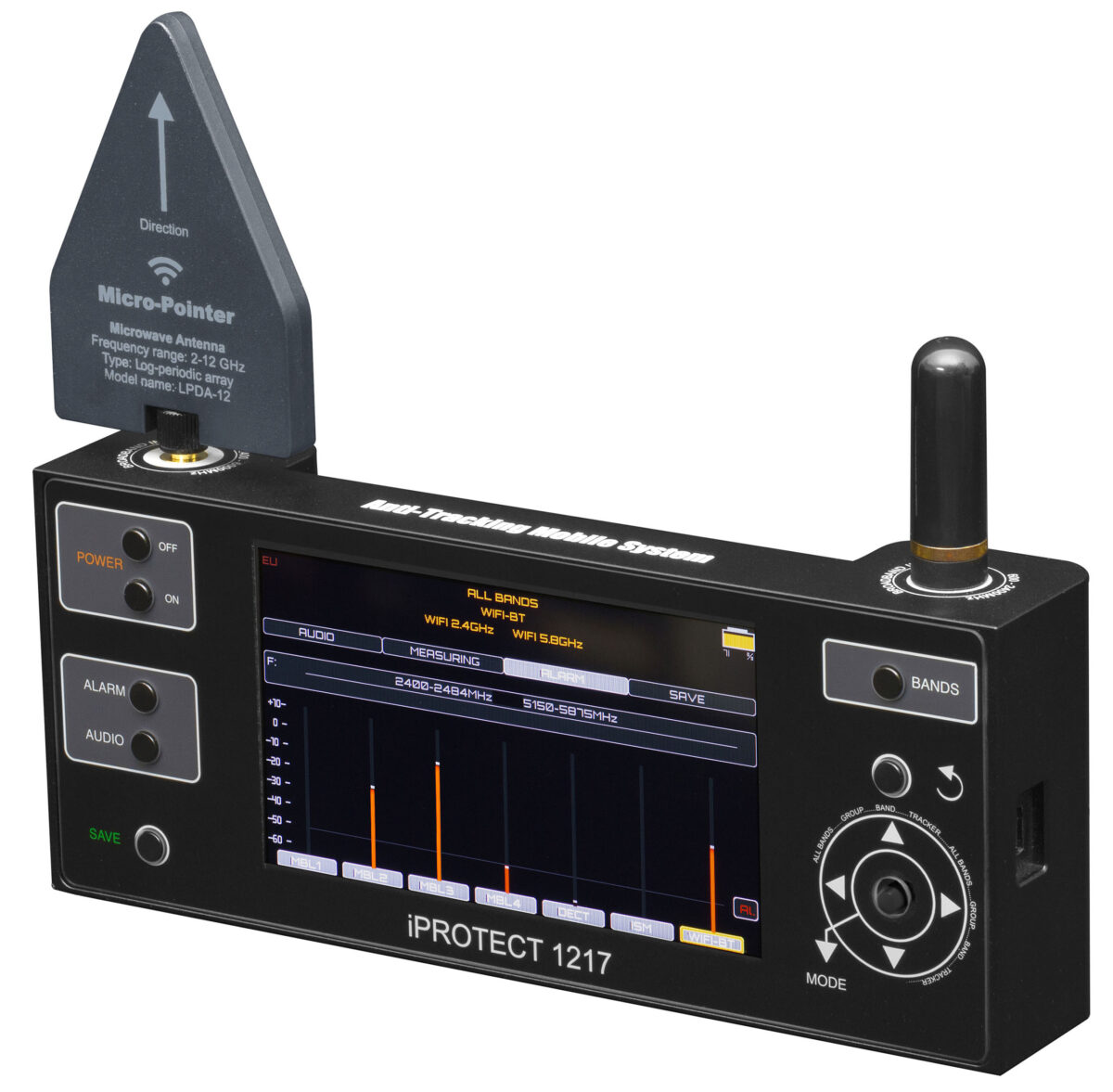

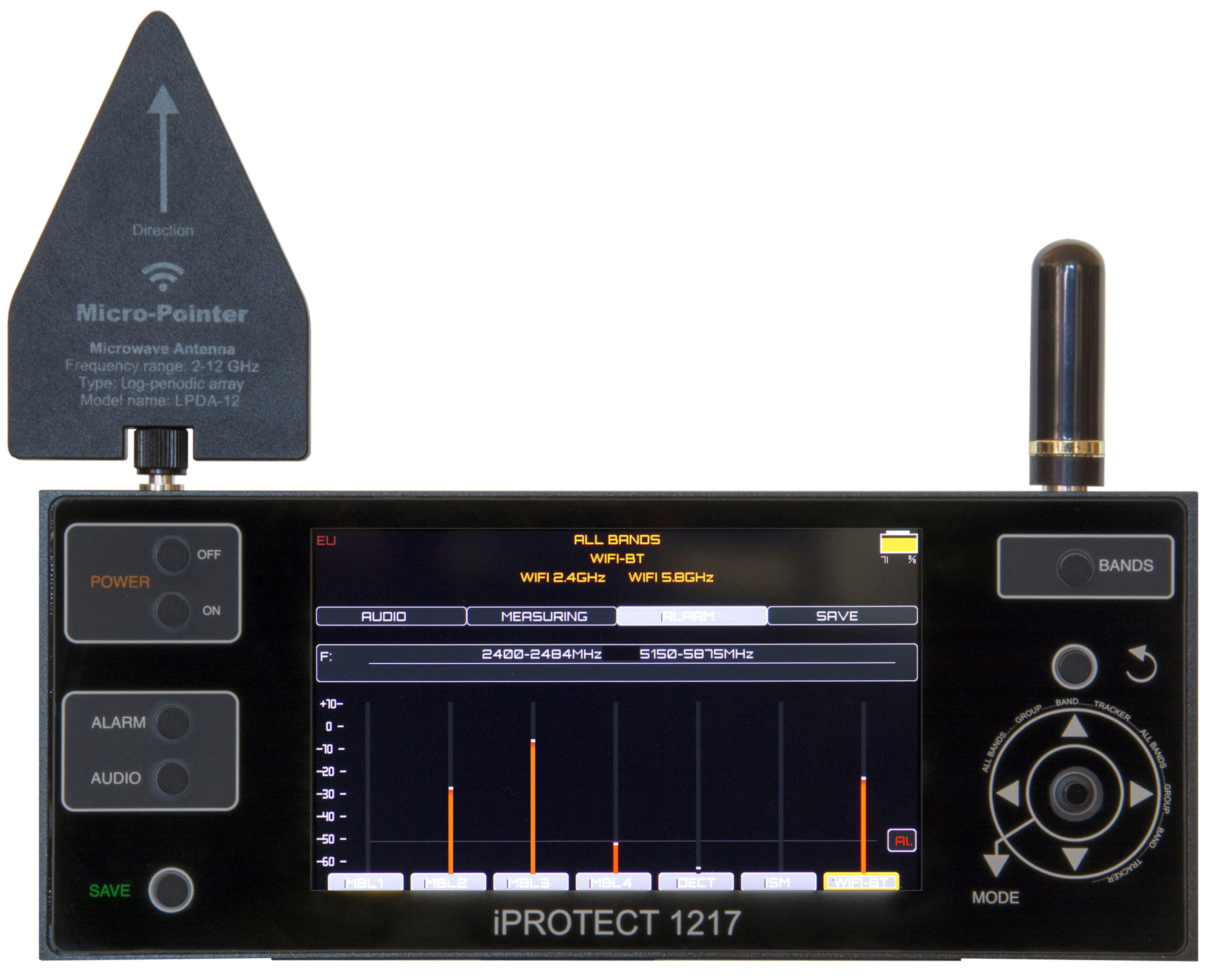

iProtect 1217
The anti-tracking mobile system
Able to detect mobile and wireless signals at a much greater distance compared to conventional RF detectors (at least,10 times more)
Selective: interference resistant and with a high sensitivity
Has worldwide coverage of mobile standards – can detect all existing bands of GSM, CDMA, 3G, 4G/LTE and 5G in the range up to 6 GHz
Able to detect all types of wireless signals,including Wi-Fi 2.4 GHz, Bluetooth, Wi-Fi 5 GHz, DECT, ISM 434MHz, ISM 968 MHz and ISM 915 MHz
Detection of at least 27 mobile and wireless bands
Can be adjusted to the frequency allocation of the country of use
A selective multi-band principle of work informs the user of exactly which signals were found
The mode of analysis of a certain band facilitates the physical search of a transmitter
A separate mode for the detection of GPS trackers with history accumulation (TRACKER)
ALARM function warns the operator about exceeding the threshold, both with sound and visually
43 threshold levels for setting optimal sensitivity
Can be set up for specific tasks, for example, for the detection of Wi-Fi only, etc.
Operation modes:
ALL BANDS (detection on all bands)
GROUP (detection on the selected group of bands)
BAND (analysis of a separate band)
TRACKER (detection of GPS trackers)
Two antenna inputs and two antennas in the set for ensuring maximum sensitivity
The high-band directional antenna facilitates locating of transmitters above 2400 MHz
The built-in rechargeable battery provides an operational time of up to 5 hours
USB recharging
Number of bands: 27
Antenna inputs:
Input 1: SMA, 2400 – 6000 MHz
Input 2: SMA, 600 – 2400 MHz
Operation modes:
ALL BANDS (detection on all bands)
GROUP (detection on the selected group of bands)
BAND (analysis of a separate band)
TRACKER (detection of GPS trackers)
Alarm function: Visual or audio
Number of alarm threshold levels: 43
Sound signals: Alarm, depression of buttons
Regions:
US (bands of the USA)
EU (European bands)
TOTAL (all bands)
Operating and control elements:
Joystick: move left-right, up-down, threshold adjustment, mode selection
Button POWER OFF: switch off
Button POWER ON: switch on
Button ALARM: alarm
Button AUDIO: sound
Button BANDS: band set up
Button BACK: exit to the previous mode
Button SAVE (storing the current state)
Power supply source: USB 5V
Power: Built-in rechargeable battery 6800 mA*h 3.7 V
Battery operational resource: Up to 5 hours
Mass:
The device without antenna: 750 g
Packed: 1500 g
Dimensions:
The device without antenna: 208 x 86 x 41mm
Packed: 27 x 22 x 10 cm
Operating temperature range: -5…50 °C
Device
High-band antenna Micro-Pointer LPDA-12
Low-band rod antenna
Charging cable USB Type C
2 x Angle adapter SMA
A case for transportation
User’s Manual
