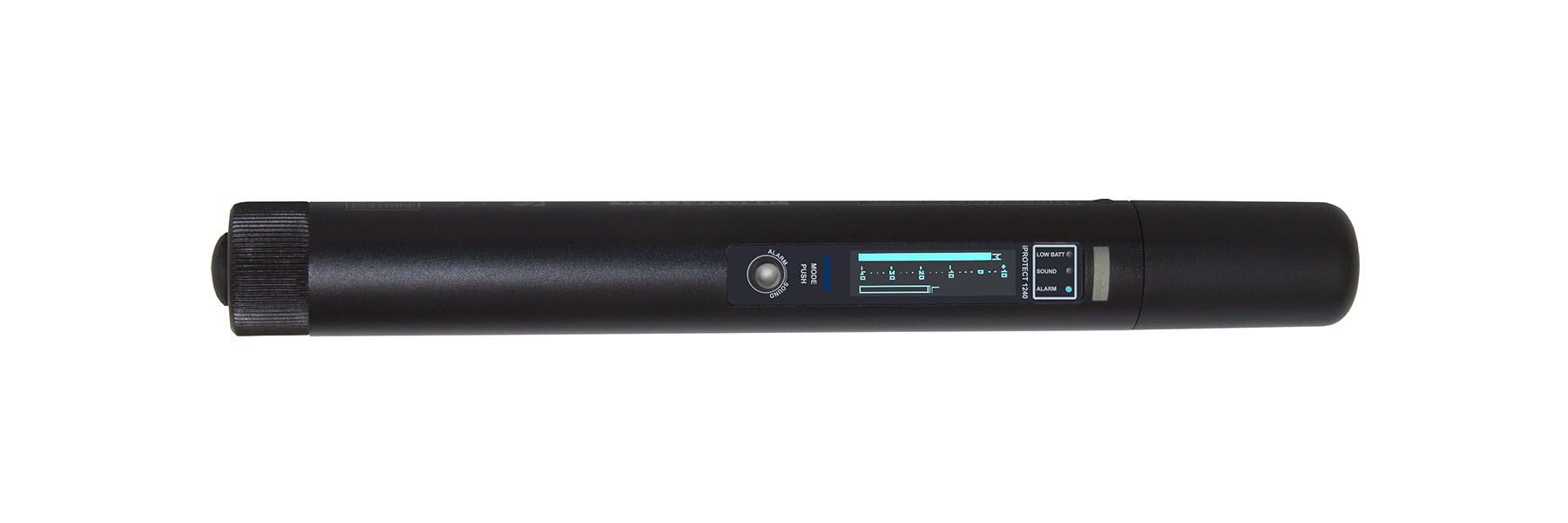

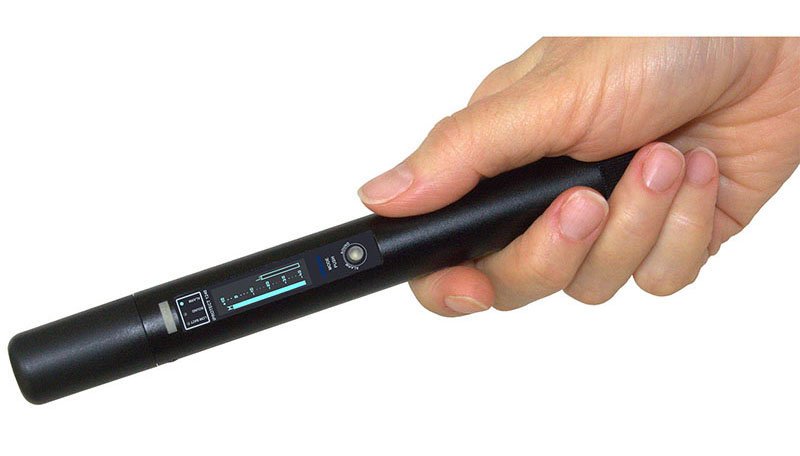

iProtect 1240
Microwave Millimeter-Wave Detector
The evolution of mobile communications and the emergence of 4G/5G have changed the methods and technical solutions used for covert information retrieval (bugging devices).
Modern mobile network infrastructure provides unprecedented possibilities:
transmission of audio, visual, and other information in real time
wide bandwidth ensuring high-quality transmission
wide network coverage
unlimited data transmission distance, and absence of the necessity to deploy a monitoring post near the surveillance object
remote control capability, accumulation of information,and accelerated transfer to increase concealment
the possibility of storing information on cloud services with full anonymity
To detect radio-frequency covert surveillance devices, including those operating via 4G/5G channels, field detectors, mobile signal detectors, and specialized spectrum analyzers are used. Typically, they cover frequency ranges up to 6 GHz or 12 GHz and can effectively detect signals within those limits. However, several 5G bands operate at higher frequencies, and such signals cannot be detected by standard search equipment. These are the millimeter-wave (mmWave) bands. Although these bands have limited penetration through walls and structures and are mostly used outdoors or in areas with large crowds, there remains a possibility they may be used for illegal information transmission. Therefore, during a professional bug sweep, detecting and localizing signal sources in the millimeter-wave range becomes essential.
The new iProtect 1240 detector has a frequency range of 9–44 Ghz and is capable of detecting signals inaccessible to other detectors and many spectrum analyzers:
mobile devices using 5G millimeter-wave bands, including those transmitting illegally obtained audio or video
5G mmWave access points
other high-frequency signals, including bugging devices using proprietary non-5G protocols
Detects covert radio-frequency surveillance devices operating in ultra-high-frequency ranges that standard detectors cannot identify, such as hidden microphones, cameras, 5G mmWave transmitters, or other microwave transmitters
Excellent addition to a professional sweep kit by expanding the detection range up to 44 GHz
Significantly lower cost than professional spectrum analyzers and much easier to operate
Ignores signals outside its range (below 9 GHz), simplifying operation
Detects signals regardless of modulation type or transmitted information
Three operating modes:
Silent (visual indication only)
ALARM (audio alert + visual)
SOUND (amplitude component playback + visual)
Dual-level bargraph:
Modulation Level (high sensitivity, long-distance detection)
RF Level (precise localization)
Built-in antenna with 30° directional pattern
Compact and durable duralumin housing
Powered by one AA battery (LR06)
Low battery indication
Battery life: 10–20 hours
Frequency range: 9 – 44GHz
Sensitivity: -40 dBm
Modes: Silent, ALARM, SOUND
Scale types: Modulation Level, RF Level
Control buttons: Power, Mode
Display: OLED 128×32
Battery life: 10 – 20 hours
Dimensions: 172 x 19 mm
Current consumption: 120 – 200 mA
Power: 1 battery AA (LR06)
