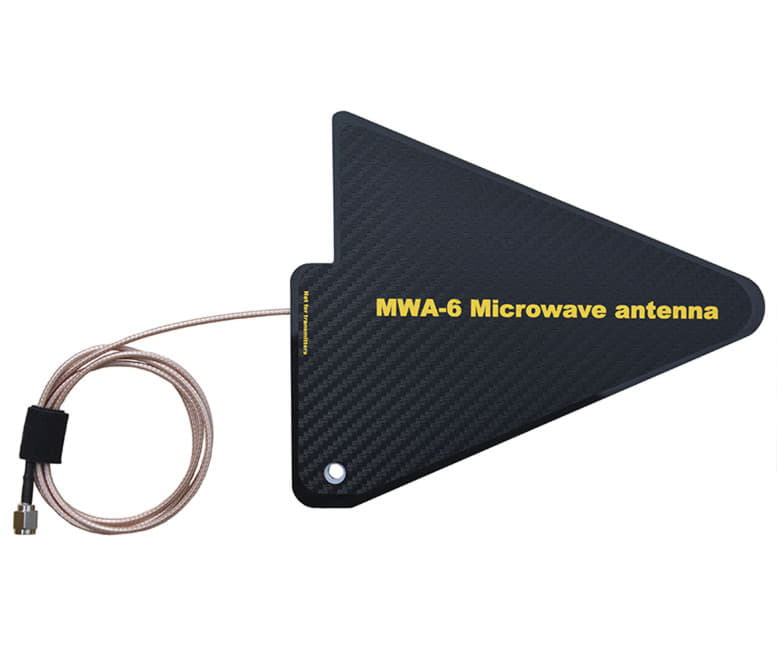

MWA-6 microwave antenna
Microwave antenna for digital transmissions
Can be used with any RF equipment, including receivers, spectrum analyzers, RF detectors, etc. Is particularly good for the location of GSM, CDMA, 3G, 4G (LTE, Wi-Max), Wi-Fi 2.4GHz, Bluetooth, Wi-Fi 5GHz, DECT and other digital transmissions.
Perfectly suited for Delta 4G/12G, Protect 1206i, Protect 1207i.
Frequency range 800-6500 MHz
Directed (log-periodic)
Typical forward gain: 6 dBi

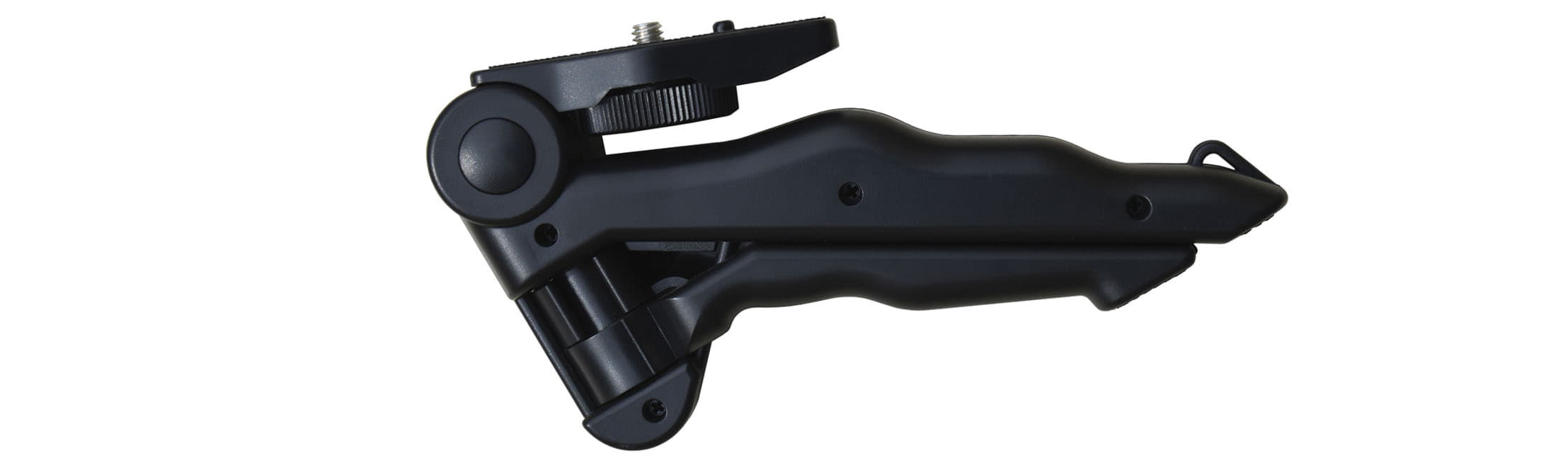

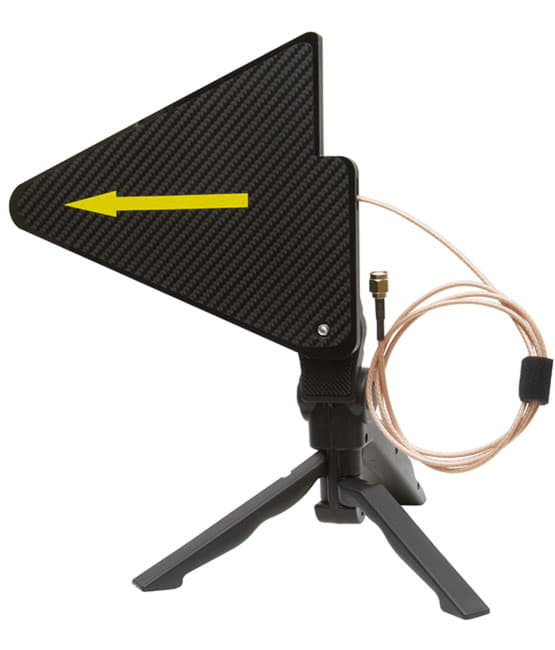

Tripod mountable (tripod supplied)

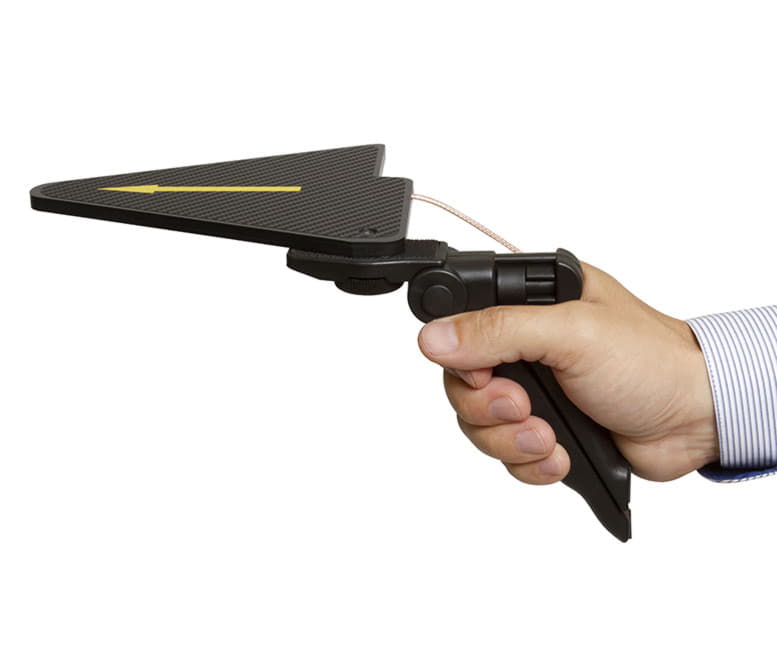

The tripod can convert to a hand-held unit for manual probing (locating procedure)
Connector type: SMA
80 cm cable
Dimensions (without tripod) 18 x 14.5 x 0.7 cm
Mode of use: receive
Indoor use only
