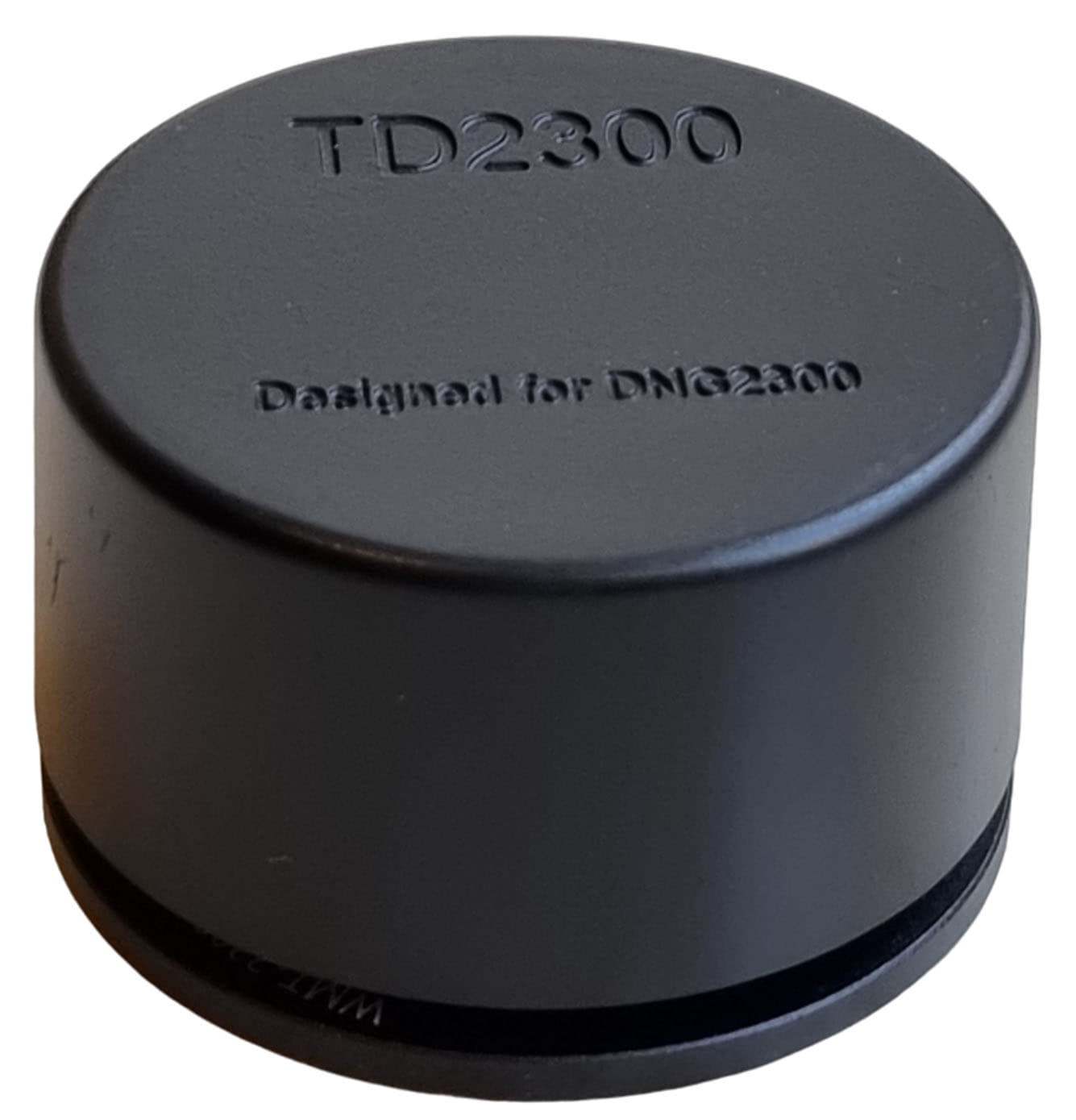

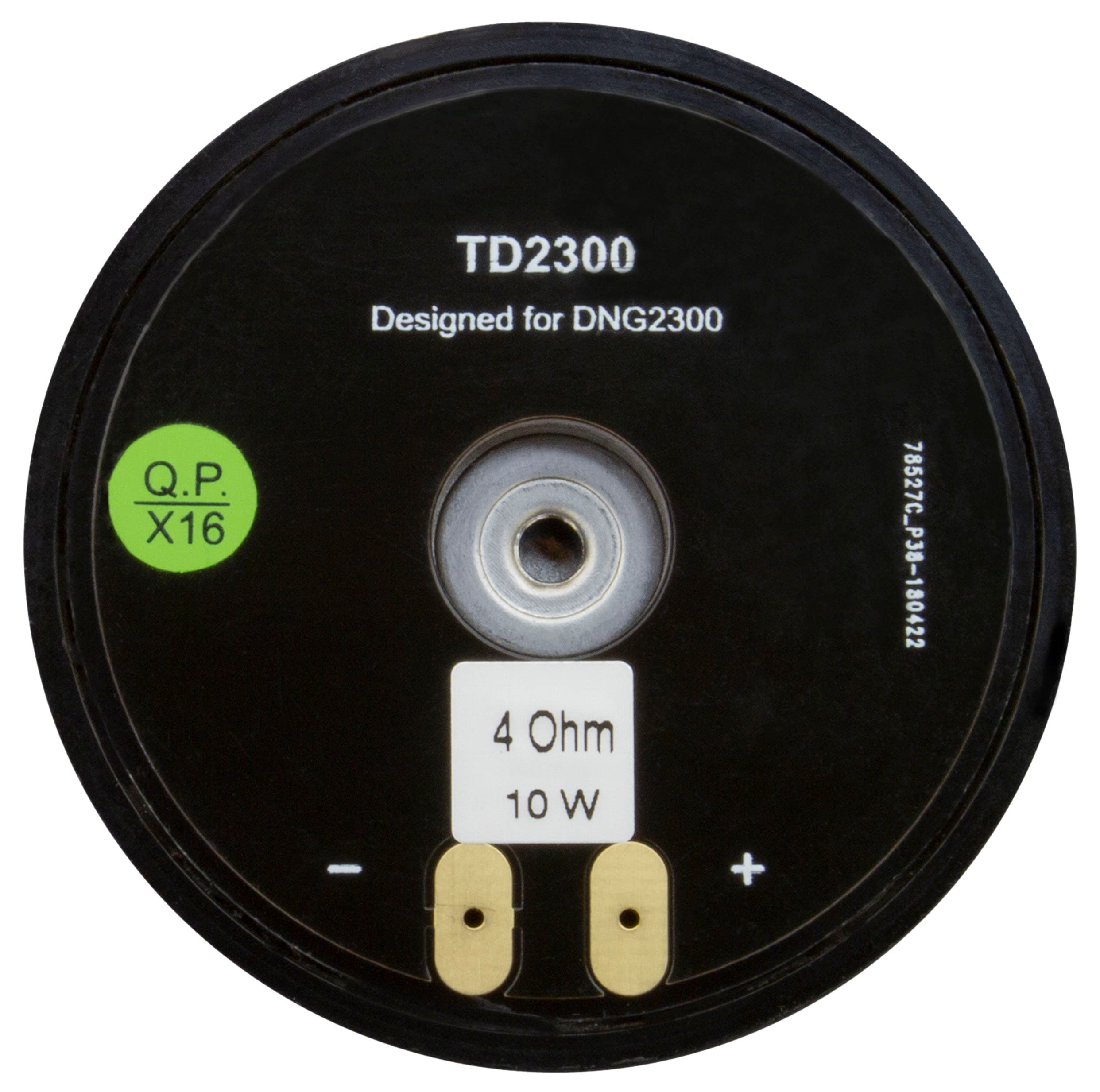

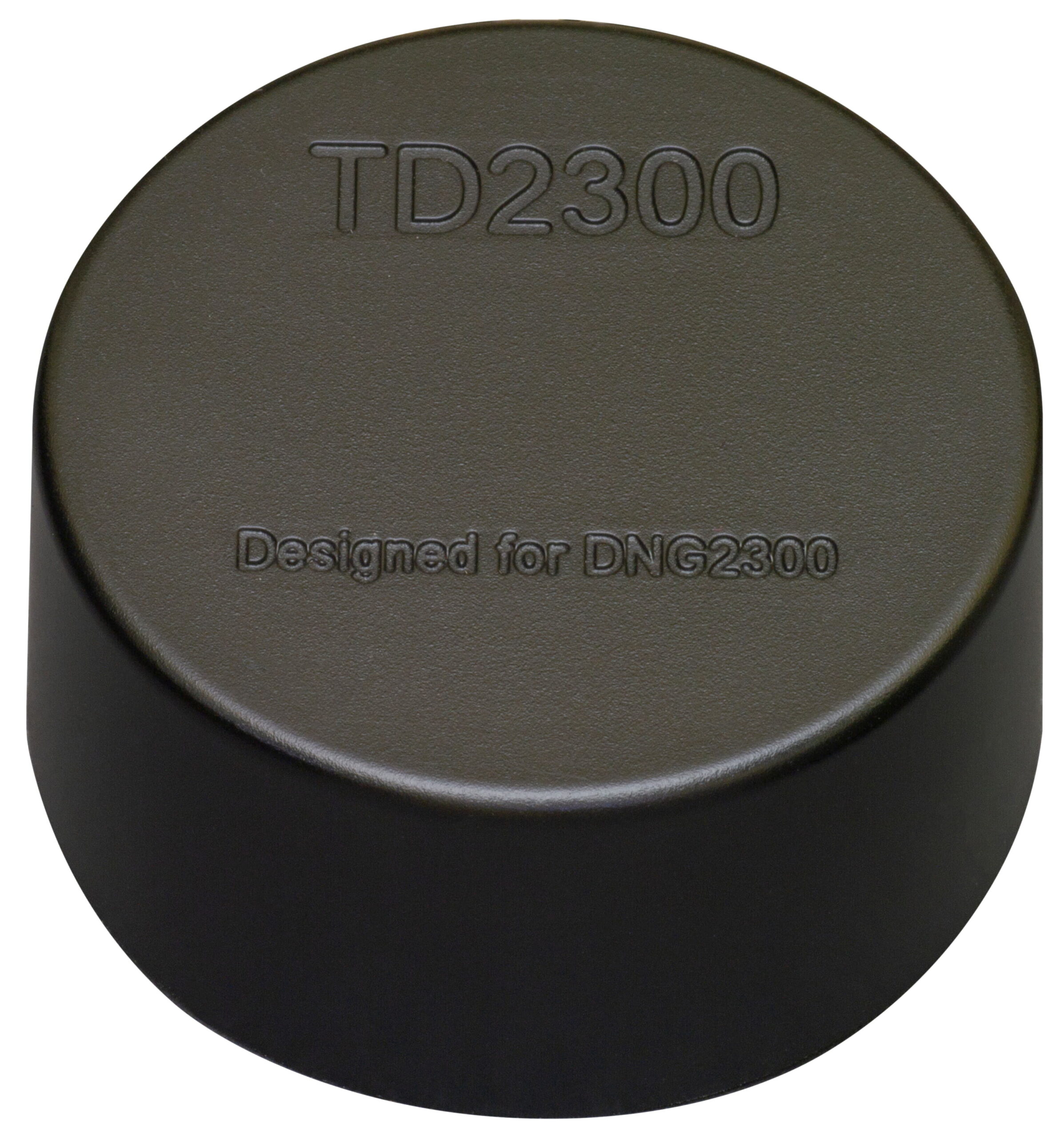

TD2300

The TD2300 vibroacoustic transducer is part of a complete counter surveillance protection system. It inducts noise into walls, floors, ceilings, windows and other surfaces of the building, preventing leakage of sound signals. To provide a sufficient level of protection the system consists of a number of transducers installed on different structures in the room and is connected to a generator.

• Attractive design, looks good in any interior

• High power output, combined with compactness

• Fits equally well on windows, walls and other structures

• The included mounting set makes it possible to install the transducer on any surface

• Passes most of the generated noise into the desired construction in the form of vibration, while also producing less audible interference

• The frequency characteristics optimally correspond to the spectrum of human’s speech

• Perfectly suited for the DNG 2300 white noise generator

• Impedance: 4 Ohm

• Frequency response: 58 Hz – 12 kHz

• Power: 10W

• Weight: 252 g

• Dimensions: 56×27 mm

1. Transducer

2. Spacer

3. Bolt, double ended, M6x20 mm

4. Screw, double ended, 4×35 mm

5. Plastic dowel 8×40 mm

6. Mounting disk

7. Wall anchor 8×23 mm
